Integrated Circuits - ICsInterface ICsIO Controller Interface ICTexas Instruments TMS9901NL

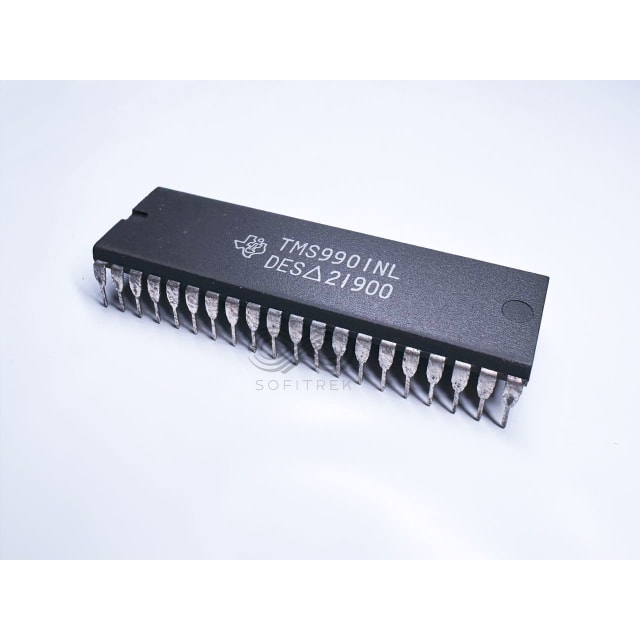

Image shown is a representation only. Exact specifications should be verified before purchase.

Texas Instruments

TMS9901NL

Programmable Systems Interface Interrupt I/O Controller DIP‑40 IC

Trust Center

Products

Browse stocked product families

View all products

Products

Capacitors

Available product types

Choose a family to filter stocked inventory.

Browse all

Aluminum Electrolytic Capacitors Ceramic Capacitors

Sofitrek Part Number: ST-100027
Manufacturer: Texas Instruments
Manufacturer Product Number: TMS9901NL
Marking: TMS9901NL
Description: IC PROG INTERRUPT I/O CTRL 5V 40-DIP
Condition: New Surplus

Specifications

Component Grade: COMMERCIAL
Features: TTL Compatible | Interrupt Control | Interval and Event Timer
Interface Type: CRU
Mounting Type: Through Hole
Number of Ios: 16max · Seven dedicated I/O lines plus nine lines configurable as interrupts or I/O.
Operating Temperature: 0 °C to 70 °Cmax · Free-air temperature.
Package Case: DIP-40
Product Type: Programmable Systems Interface
Supply Current: 200 mAmax · Average current from VCC; clock cycle time = 333 ns; TA = 25 °C.
Supply Voltage: 4.75 V to 5.25 VVCC supply; VSS = 0 V.

Product information is for catalog reference and may contain errors. Sofitrek does not host datasheets. Before ordering, obtain the manufacturer’s current documentation for the exact part number and verify its specifications, package, and suitability for your use. You are responsible for this check.

Report a product data issue

Additional specifications

Clock Cycle Time: 300 ns to 2000 ns
Continuous Power Dissipation: 0.75 W
Package Body Material: PLASTIC/EPOXY
Storage Temperature: -65 °C to 150 °C
Semiconductor Technology: MOS
Terminal Pitch: 2.54 mm

Trade / compliance

ECCN: EAR99
HTS Code: 8542.39.00.60
Part Lifecycle Status: Obsolete

Condition and sourcing

New Surplus

Packaging: Tube

Condition and sourcing Product information Product Assurance

Need help with this part?

Sales can confirm price breaks, shipping and export requirements, and documentation before you order.

Email sales

info@sofitrek.com

Sofitrek is an independent distributor and is not an authorized distributor of Texas Instruments. Purchases are subject to the Sofitrek Terms of Sale & Use.

In Stock - 76 available

Ready to ship

Ships fromCalifornia, United States

Quantity

$17.10 / unitExt. $17.10

Contact sales

All prices are in USD

MOQ: 1

New Surplus

Qty	Unit price	Ext. price
1+	17.100	17.10
10+	16.250	162.50
